Stump Thrust

Worlds only FIBA certified bearer & joist system.

The Stump Thrust range of sports floors provide the ONLY FIBA certified bearer & joist system available on the market. Stump Thrust is provided in three differing levels of performance. When combined with the most technically advanced PR, Stump or Thrust-A-Cushion pads they provide the highest level of player comfort for bearer & joist construction.

Engineering

Each application is designed to meet the individual facility's requirements, paying particular attention to site conditions, building design, designated sports and seating load requirements for current or future needs.

Technical Achievement

Traditionally pier and beam construction (bearer and joist) had restricted design characteristics. This type of construction now offers resilient floors all the way through to fully floating area-elastic and point elastic floor systems. Designed to cater for high point loads, whilst showing considerable attention to the DIN 18032; part 2 standards. As the exclusive NSW, QLD & ACT distributors of ASF Horner, Shoreline is the only Australian flooring company to carry the FIBA approval for Level 1 & 2 competitions within bearer & joist construction.

Versatility

The Stump Thrust range of floors are an ideal choice when encountering sloping sites, sites with rocky or bad soil conditions and contaminated areas, where a slab on ground would be excessively expensive. Stump Thrust Systems are can be monumentally more cost effective then suspended slab construction.

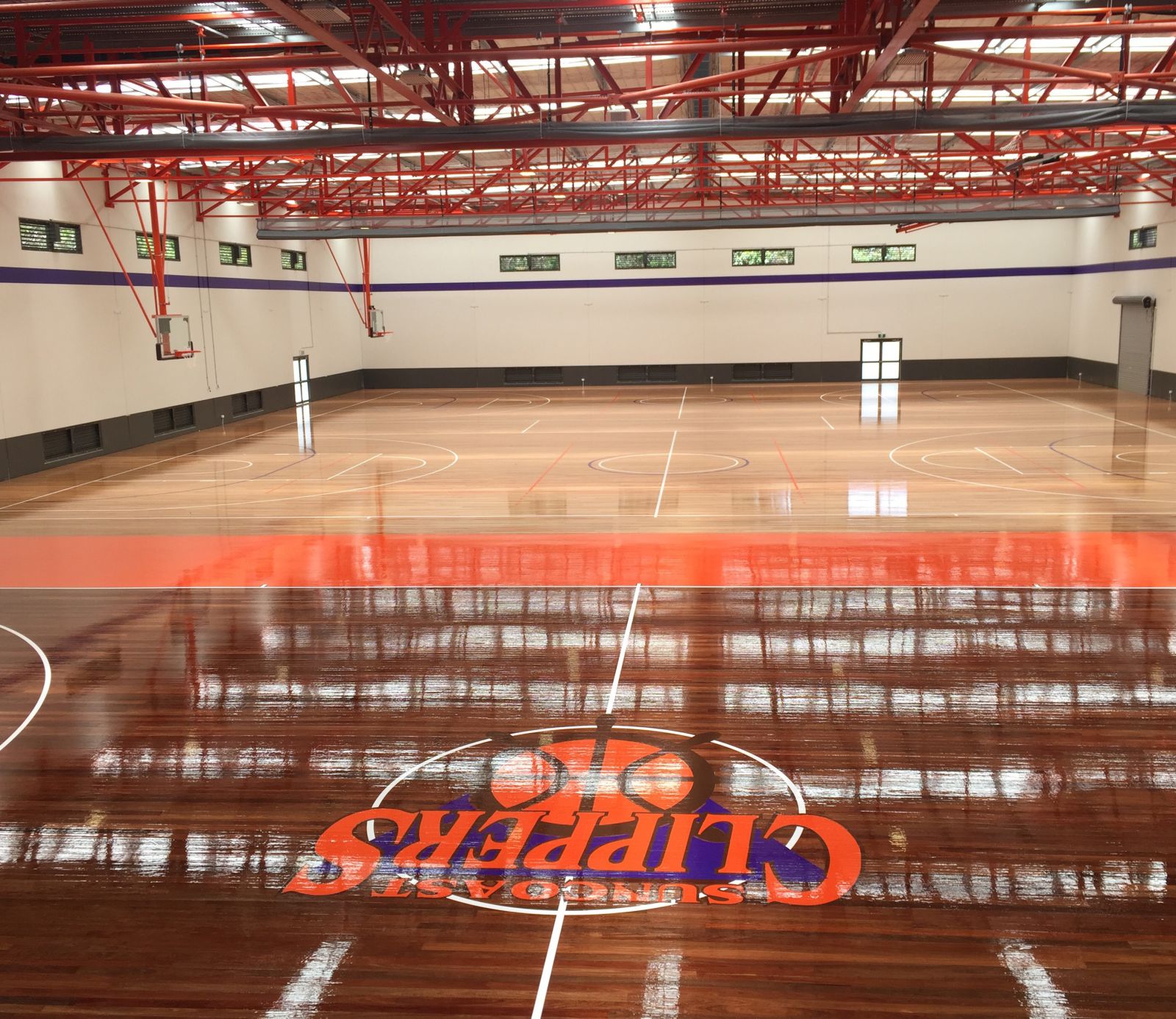

Stump Thrust 1

The concrete stump is positioned within the concrete footing, an ASF Stump resilient pad is fitted to the stump, then the bearers and joists are fixed into position. Directly fixed to the top of the joists is the selected Australian Hardwood or North American Maple flooring. This system has excellent resiliency, awesome playability and is very economical.

Application

Community Halls, Multi-purpose, Badminton, Roller Derby, Squash, Volleyball, Basketball, Futsal and Netball.

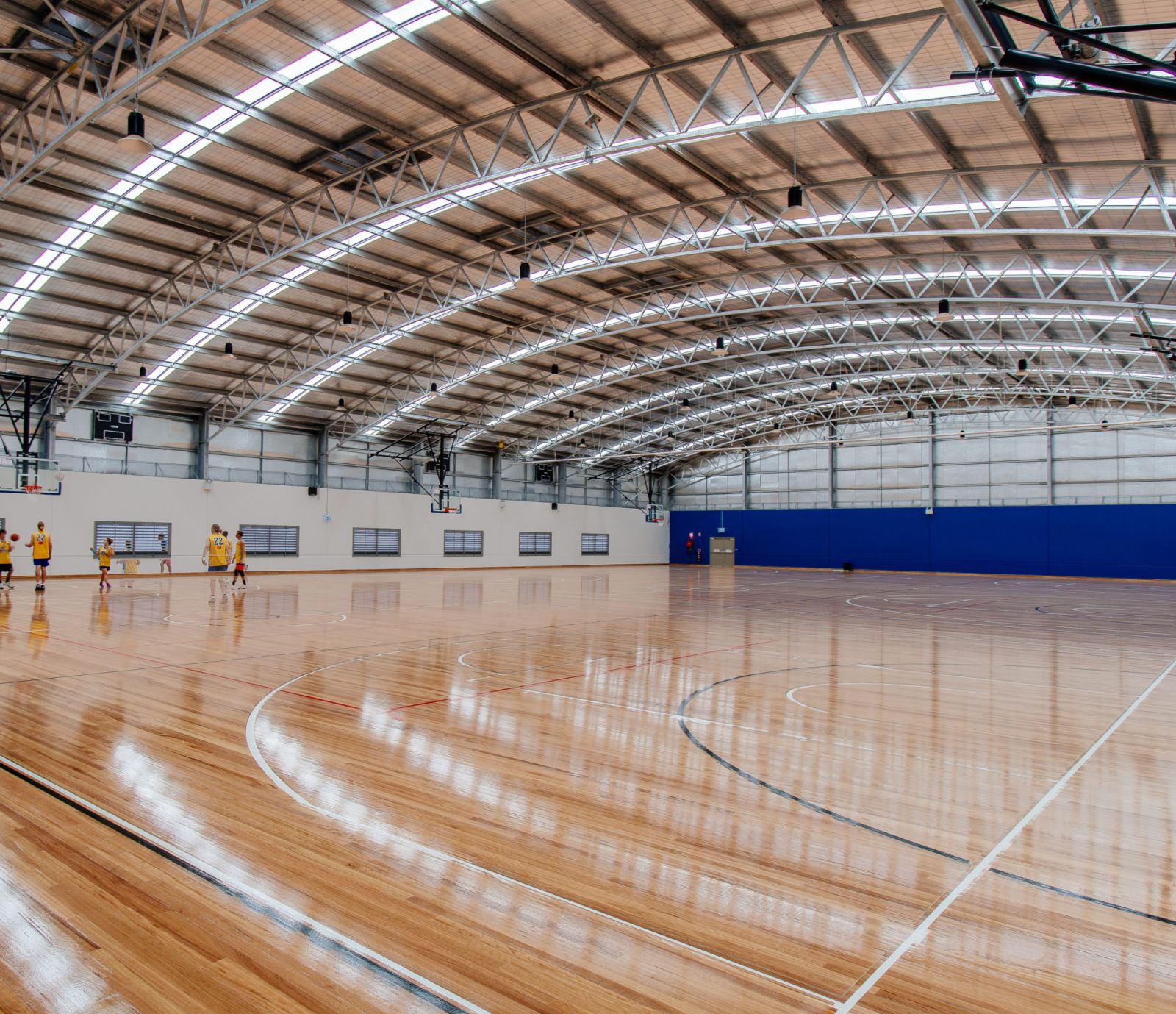

Stump Thrust 2

This FIBA certified system incorporates the same components as the Stump Thrust 1 System. The predominate difference is the specially designed Stump Thrust 2 bracket and Cushion pads are fixed on top of the bearer and directly below the joists, then a 12mm board layer is added over the joist in this system, giving the system added strength, stability and enhanced resiliency.

Application

Sports Stadiums, Community Halls, Multi-purpose, Badminton, Roller Derby, Squash, Volleyball, Basketball, Futsal and Netball.

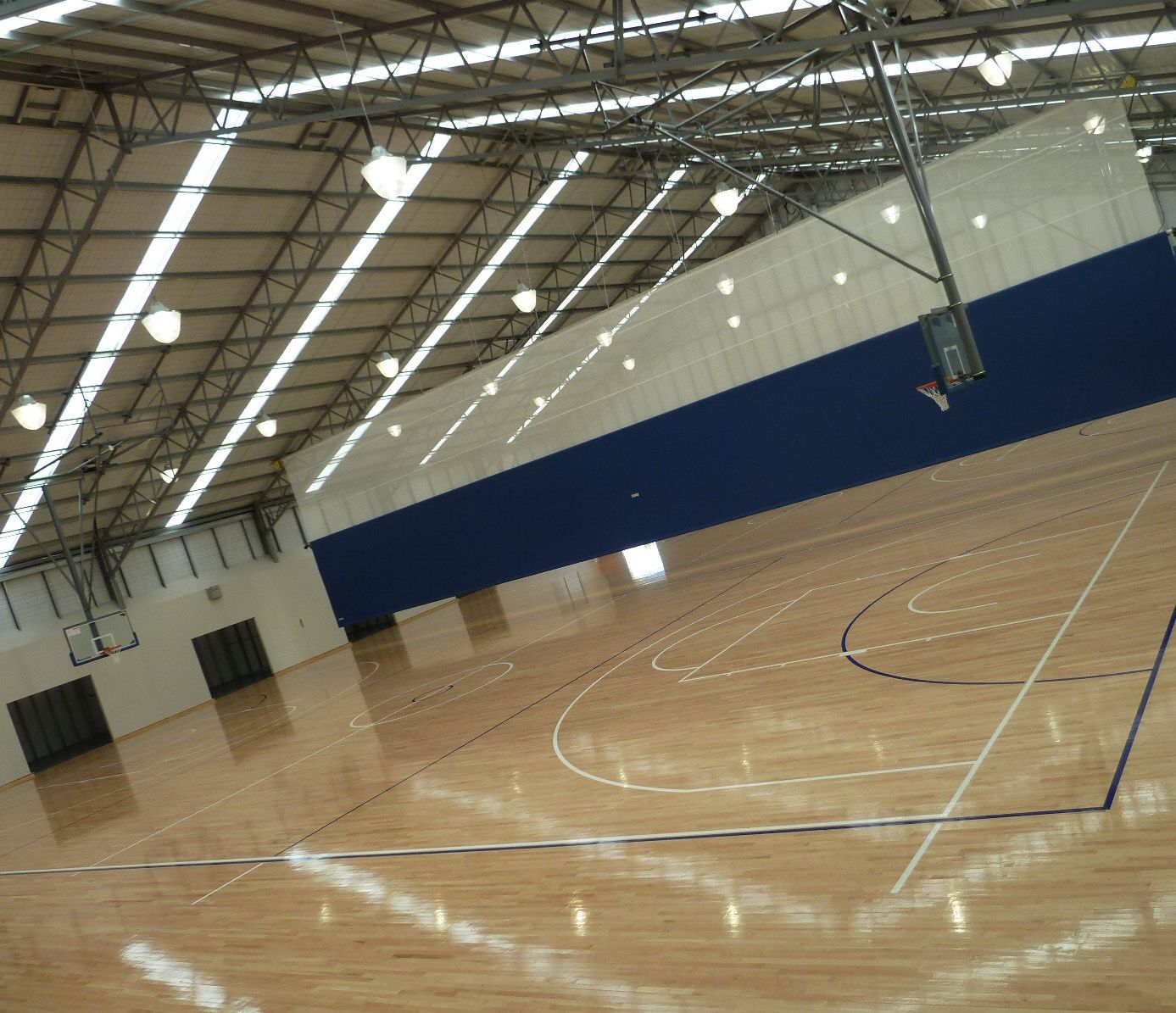

Stump Thrust 3

This FIBA certified system is constructed with the same stumps, bearer and joists. Fixed to the top of the joists are the PR Cushion pads, then two layers of 12mm board layer, and the selected Australian Hardwood or North American Maple flooring. The system provides the most uniform resiliency, maximum sound control and brute strength.

Application

Sports Stadiums, Community Halls, Multi-purpose, Badminton, Roller Derby, Squash, Volleyball, Basketball, Futsal and Netball.
